PIT BIKE 4

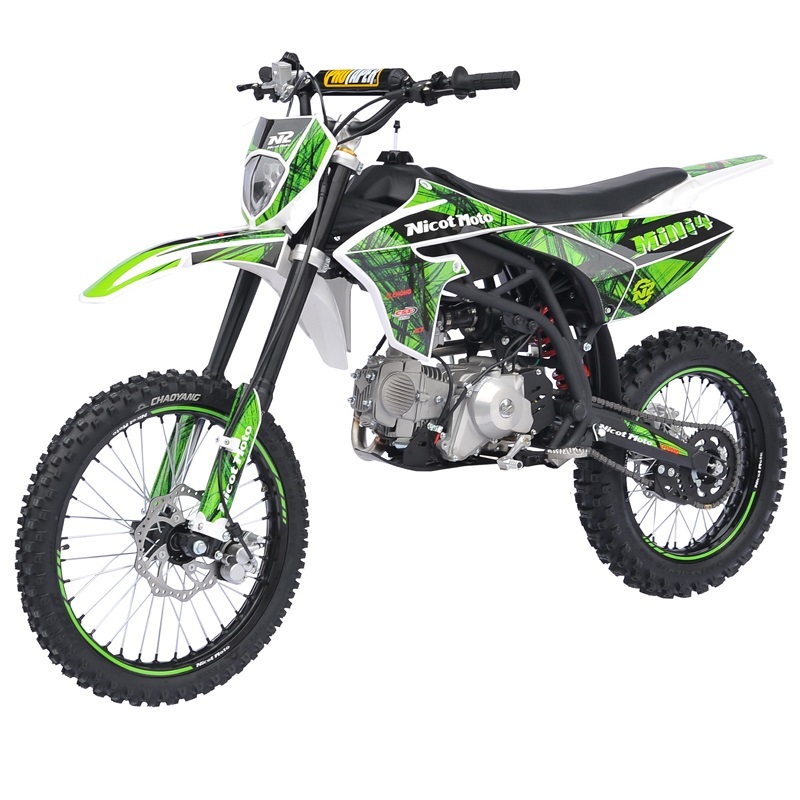

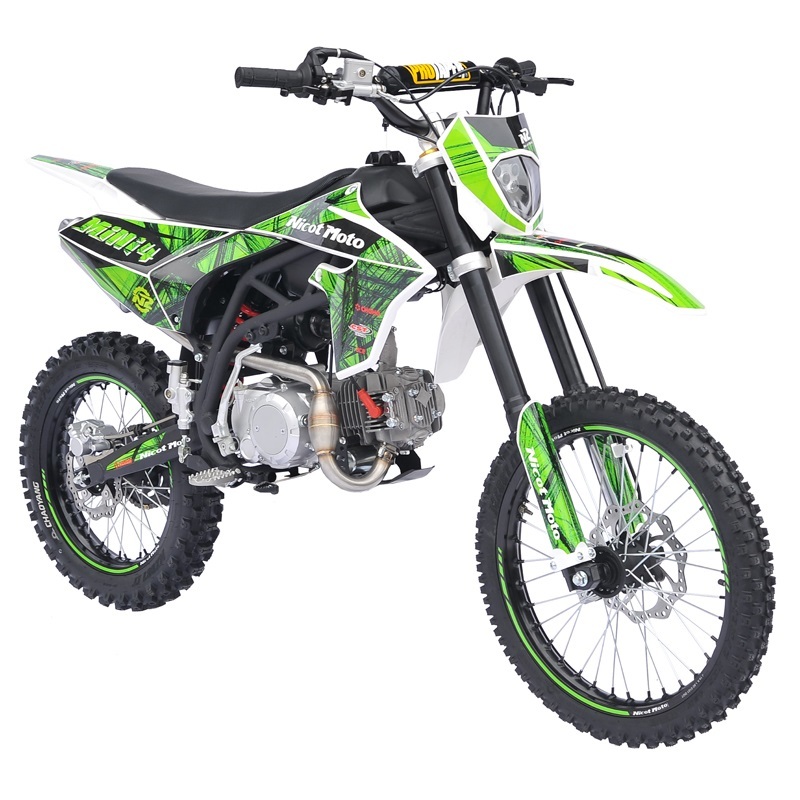

125/140/150/160/190 Newly Developed Mountain Forest Road Cross-country Motorcycle
keyword：
Classify：
Describe
| Selling points | Commodity attribute |
|
1.125/140/150/160/190 Newly Developed Mountain Forest Road Cross-country Motorcycle 2.φ 22* φ 28 Aluminum Alloy Reducing Handle Tube With High Quality Breast Cotton 3. New Mold Opening Led Headlamp 4. Aluminum Alloy Mesh Wheel, Rim Decal 5. High Quality Tyre: Front Wheel 70/100-17, Rear 90/100-14 (front 70/100-19, Rear 90/100-16 Optional) 6. Front And Rear High-quality Disc Brakes 7.nibbi Pe Carburetor 8. Lindco Decals Are Used Throughout The Vehicle 9. Zhenghe 428h Chain 10. Forged Aluminum Alloy Upper And Lower Connecting Plates 11. L800mm Inverted Front Minus +l390mm Single Rear Minus, Adjustable Front Minus And Rear Minus Options 12. Licensing 13.cnc Color Hub Optional 14. Optional Cnc Color Directional Coupler 16.nibbi Throttle Seat Optional 17.cnc Throttle Seat Optional 18. Cnc Three Fold Handle Is Optional (upgraded To A Safer Double Fold Handle) 19.cnc Shift Lever Optional 20.cnc Brake Pedal Optional 21. Color Cushion Leather Available 22. Handle Shield Optional 23. Cnc Color Fuel Tank Cover Optional 24.cnc Chain Regulator Optional 25. Aluminum Alloy Flat Fork Optional 26. On Road Version Status: The Headlamp Is Equipped With Led Bulb, Led Running Water Steering Lamp, Tail Lamp Rearview Mirror, Horn And Digital Instrument Are Optional |
Engine Model:156FMJ
One cylinder,4 stroke,air-cooling
Bore×Stroke (mm):56×57
Piston Displacement (ml):140
Compression Ratio:8.8:1
Maximum Power (kw/r/min)：6.8/7500
Maximum Torque (N.m./rpm)：9.7/5500
Transmission System：Chain drive
Ignition Type：C.D.I
Starter System：Electric/Kick
Transmission： Constant mesh, 2-stage transmission, 4 gears
L×W×H (mm)：1940×760×1170
WheelBase (mm)：1320
Seat Height (mm)：875
Ground Clearance (mm)：310
Dry Weight (kg)：88.5
Brake (Front/Rear)：Disk/Disk
Tyre, Front：70/100-17
Tyre, Rear：90/100-14
Fuel Tank Capacity (L)：8
Engine Oil Capacity (L)：1.1
Max. Load Capacity (kg)：150
Max. Speed（km）：90
Battery：12N6.5Ah
QTY in 40'HQ：166 PCS/CBU
|
